INT: Simple Cluster Mod

[97Lude]

Well when i put in my new cluster, i took out all the bulbs that light up the gauges, and took off the little blue covers over the bulbs. Took out the two bulbs that light the whole cluster up and BAM, green reverse gauges looks perdy. And no ugly ricey looking silver/white etc gauges in the day

[VRDrvr]

Yea I replaced mine with red bulbs and used led's for the ones that illuminate the cluster. Do you have any pictures?

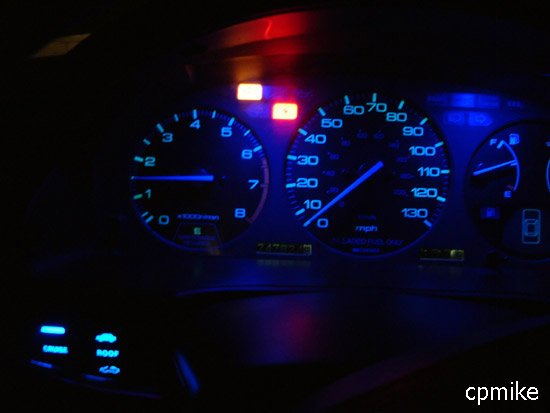

Here is a pic of mine

[91accord4door]

damn that does look nice.

[cp[mike]]

gotta love it.

[91accord4door]

but that looks even better.

[cp[mike]]

Originally posted by 91accord4door
but that looks even better.

same thing, just a different color

[timmy0tool]

mike is your CEL on? or is that the battery light? i can't remember. is the H22 ok? the blue looks hot though!

[cp[mike]]

Originally posted by timmy0tool
mike is your CEL on? or is that the battery light? i can't remember. is the H22 ok? the blue looks hot though!

hah yeaup. i had a VTEC solenoid CEL for a while after i finished my swap, ends up the sol was just stuck. thats an old pic, its been fine ever since

[VRDrvr]

I personally think the red is a little easier on the eyes....the blue looks good .

[ChIoVnIdCa]

I made mine blue. I posted some pics earlier I think.

[alb_accord]

ok so u remove the two lights in the back of the cluster and what else? pic of the plases of the lights that u remove would be nice too.

[ckyskater733]

please elaborate. like is there a certain type of bulb # im supposed to get?

[cp[mike]]

there are two small bulbs above the cluster, that light up the front of the faces and the needles. if u turn on ur lights and look up from under the cluster (while its in the car) youll see them. if you pull them out, the gauges will only have their backlights, so the numbers will all light up, but only from the back- so they will look like reverse glow gauges. i believe this is what 97lude was talking about.

there are also three size 194 (for the two big gauges) and two size 74 (for the temp and gas gauges) that are in the back of the cluster. if you pull THOSE out, the numbers on ur gauges wont light up at all.

all of the bulbs are accessible from the back/top of the cluster once it is pulled out of the dashboard. you dont need to disassemble the cluster to get to any of them.

[accordzoom]

Theres a friend of mine with a cb7 from around here,
his changes 6 diff colors and bounces witht the beat of the music,
prett much just a show effect since hes on air as well, but it lookt good enough to make me smile

[4thgenaccord]

Geee wonder where you could have gotten that idea from??????


http://www.geocities.com/hondalover11279/Indiglo.html


I only posted this ALL OVER about a year ago.
